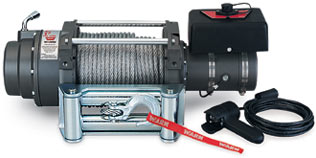

For heavy-duty winching needs, this winch is a
champion workhorse. Big torque, power and quick no-load
retrieval speed is 30 feet per minute. Its design is low
profile, so it'll fit where you want. And it's powered
by the 4.6-hp Series WoundTM motor and our
proven three-stage planetary gear train. With 125 ft. of
3/8" wire rope, the WARN M12000 can solve most any
pulling problem.
M12000 SPECS/PART NUMBERS
Part Numbers: PN 17801 CE (12V
DC), PN 265072 CE (24V DC)
Rated Line Pull: 12000 lbs. (5440
kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp
Series WoundTM
Remote Control: Remote switch, 12'
(3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 261:1
Lubrication: Aeroshell # 17
Clutch (freespooling): Rotating
Ring Gear
Brake: Automatic Direct Drive
Cone
Drum Diameter/Length: 3.5"/8.2"
(9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 125', 3/8"diameter
(38m, 9.5mm diam)
Fairlead: Roller
Recommended Battery: 650 CCA
minimum for winching
Battery Leads: 2 gauge, 72"
(1.83m)
Finish: Argent Gray Powder
Coat
Nuts/Bolts: PN 39572
CE Winches: CE products are
designed to meet European Standards. CE winches
include CE labels, manuals, roller fairlead,
safety hook and thimble.
12V DC PERFORMANCE
SPECS
Line Pull
Lbs.(Kgs.)
Line
Speed
FT./min(M/min.)
Motor
Current
Pull by
layer
layer/Lbs(Kgs.)
0
30(9.14)
67 amps
1/1200(5443)
2000(910)
14(4.27)
140 amps
2/11120(5044)
4000(1810)
8.62(2.63)
210 amps
3/10340(4690)
6000(2720)
6.92(2.11)
250 amps
4/9770(4432)
8000(3630)
5.80(1.77)
320 amps
5/9250(4196)
10000(4540)
4.39(1.34)
370 amps
12000(5440)
3.86(1.18)
440 amps
24V DC PERFORMANCE
SPECS
Line Pull
Lbs.(Kgs.)
Line
Speed
FT./min(M/min.)
Motor
Current
Pull by
layer
layer/Lbs(Kgs.)
0
31.94(9.57)
24 amps
1/12000(5443)
2000(910)
11.7(3.57)
105 amps
2/11120(5044)
4000(1810)
9.5(2.90)
129 amps
3/10340(4690)
6000(2720)
8.5(2.59)
152 amps
4/9770(4432)
8000(3630)
7.5(2.29)
175 amps
5/9250(4196)
10000(4540)
6.5(1.98)
198 amps
12000(5440)
6.0(1.83)
221 amps
Above performance specs are based on first layer of
drum
Winch Dimensions: 24.37" L. x 8.45" D. x
11" H.
(6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5"
(254mm x
114.3mm)
