EXCEPTIONAL
PERFORMANCE FOR THE DEMANDS OF UTVs

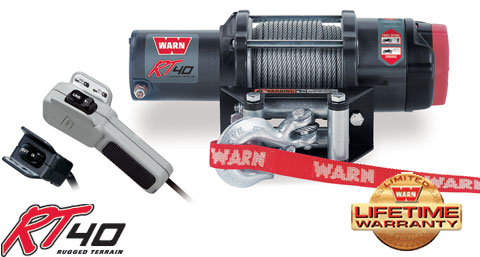

When you need
a winch for your UTV, look no further than the RT40: the
first winch designed specifically for UTVs. The RT40 has
a massive 4,000 lb. line capacity and the longest wire
rope in the WARN Powersports winch lineup so you can
pull heavier loads farther. This winch has tons of
standard features including a patent-pending disc brake
that holds strong on inclines, a fully sealed geartrain
to guard against the elements, a reliable and
smooth-running all-metal 3-stage planetary geartrain, a
corded remote and a mini-rocker control, and an
efficient electrical system for long pulls and less
battery drain. This winch is ready to go to work, so you
can get the most out of your UTV.
RT40 SPECS/PART NUMBERS
Part Number: 77000
Rated Line Pull: 4000 lbs. (1814
kgs)
Motor: 12V DC, 1.5hp (1.1 kW)
permanent magnet
Controls: Corded remote and
mini-rocker control with universal mounting
bracket
Geartrain: Sealed, all-metal
3-stage planetary
Gear Ratio: 136:1
Clutch (freespooling): Sliding pin
and ring gear
Brake: patented disc brake
Drum Diameter/Length: 2.0"/4.7"
(52mm/119mm)
Fairlead: Roller
Rope: 55' Aircraft-grade Wire,
7/32" diameter (16.8m, 5.5 mm diam.)
Recommended Battery: 14 amp/hour
minimum
Battery Leads: 6 gauge
Duty Cyle: Intermittent
Warranty: Limited Lifetime (valid
in USA and Canada only)
Mounting Bolt Pattern: 3.0" x
6.66" * (76mm x 169mm*)
* Fits UTV winch mounts
only.

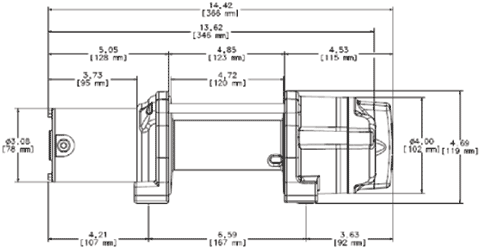

Winch Dimensions: 14.42" L x 4.51"
D x 4.69" H (36.6cm L x 11.5cm D x 11.9cm H)
Winch Weight: 14.4 lbs. (6.5
kgs)
PERFORMANCE DATA
Line Pull
Lbs.(Kgs.)
Line
Speed
FT./min(M/min.)
Motor
Current
Pull by
layer
layer/Lbs(Kgs.)
0
25 (7.6)
31
1/4000 (1814)
1000 (455)
16 (4.9)
106
2/3440 (1560)
2000 (907)
11 (3.3)
175
3/2958 (1342)
3000 (1360)
7 (2.1)
245
4/2544 (1154)
4000 (1814)
4 (1.2)
308
Above performance specs are based on first layer of
drum
