XD9000i Winch 12V 125´ Roller

( WARN )

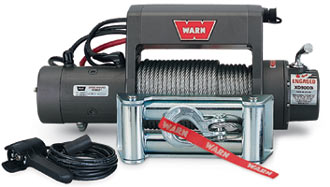

XD9000i SELF-RECOVERY WINCH

You'll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.

XD9000i SPECS/PART NUMBERS

Part Number: PN 27550 CE (12V DC)

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line

Motor: 12V 4.6 hp, 24V 2.5 hp, Series Wound^TM

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear Ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 85 lbs. (38.5 kgs.)

Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery Leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat

Nuts/Bolts: PN 39570

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	38(11.6)	70 amps	1/9000(4082)
2000(910)	14.4(4.39)	180 amps	2/8190(3715)
4000(1810)	11(3.35)	255 amps	3/7500(3402)
6000(2720)	8.67(2.64)	330 amps	4/7010(3180)
8000(3630)	6.88(2.10)	415 amps	5/6570(2980)
9000(4080)	6.38(1.94)	460 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H.
(553mm L. x 160mm D. x 252mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
