M8000 Winch 12V 80´ Hawse

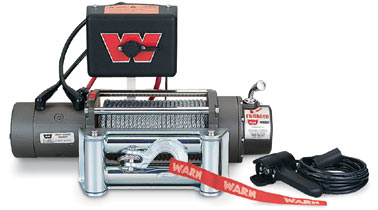

Winch Warn
M8000 SELF-RECOVERY WINCH
Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with either 80' of wire rope and hawse fairlead or 100' of wire rope and roller fairlead. Pulls a fast 8 ft. per minute at rated load.
M8000 SPECS/PART NUMBERS
Part Number: PN 20910 CE (12V DC) 80' wire rope and hawse fairlead
Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead
Part Number: PN 265032 CE (24V DC) 100' wire rope, roller fairlead, safety hook and thimble
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
Fairlead for PN 20910: Hawse
Fairlead for PN 26502, 265022, 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 42(12.8) 80 amps 1/8000(3629)
2000(910) 16(4.88) 200 amps 2/7280(3302)
4000(1810) 11.9(3.63) 285 amps 3/6670(3026)
6000(2720) 9.79(2.98) 350 amps 4/6230(2826)
8000(3630) 8.01(2.44) 435 amps

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 27.3(8.32) 46 amps 1/8000(3629)
2000(910) 17.1(5.21) 99 amps 2/7460(3384)
4000(1810) 12.6(3.84) 145 amps 3/3980(3166)
6000(2720) 10.3(3.14) 190 amps 4/6620(3003)
8000(3630) 8.8(2.68) 235 amps

Above performance specs are based on first layer of drum

Warn

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
